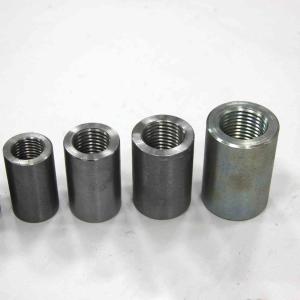

60°/75° Mechanical Rebar Couplers 12-40mm Straight Threaded Construction Materials

Brand Name : Qifu

Place of Origin : Chongqing, China

MOQ : 1000 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10,000 units per month

Delivery Time : 30 days

Packaging Details : Inside Packing: Boxes, Cartons Or Mesh Bags, Customized Design Supported With Customer'S Brand And Logo.

Model Number : Threaded Rebar Coupler

Certification : ISO9001

Model : 12mm to 40mm

Material : Steel

Quality : samples can be sent for testing

Function : Connect two steel bars together

Transport packaging : carton or wooden box

Name : 60°/75° Rebar 12-40mm Building Materials Straight Threaded Construction Coupler

Keywords : Straight Threaded Construction Coupler

Contact Now

60°/75° Rebar 12-40mm Building Materials Straight Threaded Construction Coupler

product description:

Threaded sleeve
Taper thread joint: The joint formed by the engagement of the specially made tapered thread of the steel bar end and the taper thread of the connector.
Upsetting straight thread joint: the joint formed by the straight thread made after the end of the steel bar is thickened and the thread of the connector.
Rolled straight thread joint: a joint formed by direct rolling of the steel bar end or rolling after stripping and rolling with the thread of the connecting piece.


Stripped rib rolling straight thread connection is a new technology that has developed rapidly and has been widely used in recent years. It has many advantages such as simple construction, high efficiency, and stable quality. High, good fatigue resistance. It has all the advantages of upsetting straight threads, and avoids the brittle fracture phenomenon of upsetting straight threads. It is a mechanical connection technology for steel bars currently used.

benefit:

Fully tested and approved
Quick and easy installation
No need to thread rebar
No need for expensive equipment
Personnel without on-site training
Cost-effective solution

Alloy Or Not: Is Alloy
Secondary Or Not: Non-secondary
Project Solution Capability: total solution for projects
Place of Origin: Chongqing, China
Model Number: M16-M50
Product Name: Parallel Thread Coupler
Material: 45# Carbon Steel
Color: Black/Silver
Length: 36-92mm
Rebar Stype: HRB400/HRB500
Customization: Support
Type: Standard, Position, Reducing, Upsetting, Weldable, etc.
Application: Rebar mechanical splice

Minimum Size Parameter Table Of Steel Straight Thread Sleeve (unit: mm)
Applicable Steel Strength Level Rebar Coupler Type Size Bar Dia.
12 14 16 18 20 22 25 28 32 36 40 50
≤400 Upset straight thread sleeve Outer Diamter(D) 19.0 22.0 25.0 28.0 31.0 34.0 38.5 43.0 48.5 54.0 60.0 —
Length(L) 24.0 28.0 32.0 36.0 40.0 44.0 50.0 56.0 64.0 72.0 80.0 —
Stripping and Rolling Straight Thread Sleeves Outer Diamter(D) 18.0 21.0 24.0 27.0 30.0 32.5 37.0 41.5 47.5 53.0 59.0 74.0
Length(L) 28.0 32.0 36.0 41.0 45.0 49.0 56.0 62.0 70.0 78.0 86.0 106.0
Direct Rolled Straight Thread Sleeves Outer Diamter(D) 18.5 21.5 24.5 27.5 30.5 33.0 37.5 42.0 48.0 53.5 59.5 74.0
Length(L) 28.0 32.0 36.0 41.0 45.0 49.0 56.0 62.0 70.0 78.0 86.0 106.0
Applicable Steel Strength Level Rebar Coupler Type Size Bar Dia.
12 14 16 18 20 22 25 28 32 36 40 50
500 Upset straight thread sleeve Outer Diamter(D) 20.0 23.5 26.5 29.5 32.5 36.0 41.0 45.5 51.5 57.5 63.5 —
Length(L) 24.0 28.0 32.0 36.0 40.0 44.0 50.0 56.0 64.0 72.0 80.0 —
Stripping and Rolling Straight Thread Sleeves Outer Diamter(D) 19.0 22.5 25.5 28.5 31.5 34.5 39.5 44.0 50.5 56.5 62.5 78.0
Length(L) 32.0 36.0 40.0 46.0 50.0 54.0 62.0 68.0 76.0 84.0 92.0 112.0
Direct Rolled Straight Thread Sleeves Outer Diamter(D) 19.5 23.0 26.0 29.0 32.0 35.0 40.0 44.5 51.0 57.0 63.0 78.5
Length(L) 32.0 36.0 40.0 46.0 50.0 54.0 62.0 68.0 76.0 84.0 92.0 112.0

Company Profile:


Qifu is a leading supplier of engineering construction materials in China. With ten years of experience in this field, we focus on providing high-quality engineering materials and reliable services for each project and customer, so our team includes a complete quality inspection department and a transportation tracking department. Product quality is strictly controlled before leaving the factory. Jiubo Materials is the governing unit of the Anhui Chamber of Commerce, and quality, integrity, service, and innovation are our business philosophy.

60°/75° Mechanical Rebar Couplers 12-40mm Straight Threaded Construction Materials
